DataFrame

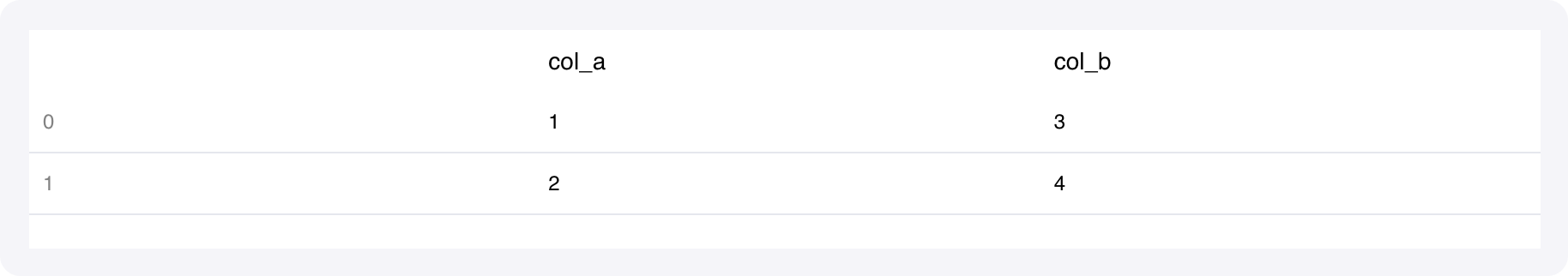

A component to display Pandas DataFrames.

Fields

Name	Type	Description	Options
Data	Text	Must be a state reference to a Pandas dataframe or PyArrow table. Alternatively, a URL for an Arrow IPC file.	-
Show index	Boolean	Shows the dataframe’s index. If an Arrow table is used, shows the zero-based integer index.	Yes No
Enable search	Boolean	-	Yes No
Enable adding a record	Boolean	-	Yes No
Enable updating a record	Boolean	-	Yes No
Enable download	Boolean	Allows the user to download the data as CSV.	Yes No
Actions	Key-Value	Define rows actions	-
Use Markdown	Boolean	If active, the output will be sanitized; unsafe elements will be removed.	Yes No
Display row count	Number	Specifies how many rows to show simultaneously.	-
Wrap text	Boolean	Not wrapping text allows for an uniform grid, but may be inconvenient if your data contains longer text fields.	Yes No
Primary text	Color	-	-
Secondary text	Color	-	-
Accent	Color	-	-
Separator	Color	-	-
Background	Color	-	-
Font style	Text	-	normal monospace
Custom CSS classes	Text	CSS classes, separated by spaces. You can define classes in custom stylesheets.	-

Events

wf-dataframe-add

Capture adding a row.

# Subscribe this event handler to the `wf-dataframe-add` event
#
# more on : https://dev.writer.com/framework/dataframe
def on_record_add(state, payload):
payload['record']['sales'] = 0 # default value inside the dataframe
state['mydf'].record_add(payload) # should contain an EditableDataFrame instance

wf-dataframe-update

Capture a cell change.

# Subscribe this event handler to the `wf-dataframe-update` event
#
# more on : https://dev.writer.com/framework/dataframe
def on_record_change(state, payload):
state['mydf'].record_update(payload) # should contain an EditableDataFrame instance

wf-dataframe-action

Remove or open a row.

# Subscribe this event handler to the `wf-dataframe-action` event
#
# more on : https://dev.writer.com/framework/dataframe
def on_record_action(state, payload):
# state['mydf'] should contains an EditableDataFrame instance
record_index = payload['record_index']
if payload['action'] == 'remove':
	state['mydf'].record_remove(payload) # should contain an EditableDataFrame instance
if payload['action'] == 'open':
	state['record'] = state['mydf'].record(record_index) # dict representation of record

Low code usage

This component can be declared directly in Python, using backend-driven UI.

ui.DataFrame(content={
        "dataframe": "", # str
        "showIndex": "yes", # str [yes, no]
        "enableSearch": "no", # str [yes, no]
        "enableRecordAdd": "no", # str [yes, no]
        "enableRecordUpdate": "no", # str [yes, no]
        "enableDownload": "no", # str [yes, no]
        "actions": {}, # Union[Dict, str]
        "useMarkdown": "no", # str [yes, no]
        "displayRowCount": 0.0, # Union[float, str]
        "wrapText": "no", # str [yes, no]
        "primaryTextColor": "", # str
        "secondaryTextColor": "", # str
        "accentColor": "", # str
        "separatorColor": "", # str
        "dataframeBackgroundColor": "", # str
        "fontStyle": "normal", # str [normal, monospace]
        "cssClasses": "", # str
    },
    handlers={
        "wf-dataframe-add": handle_event,
        "wf-dataframe-update": handle_event,
        "wf-dataframe-action": handle_event,
    }
)

A function, in this example handle_event, should be implemented in your code to handle events.

def handle_event(state, payload, context, ui):
  pass

Reference

Explore this component’s source code on GitHub
