Overview

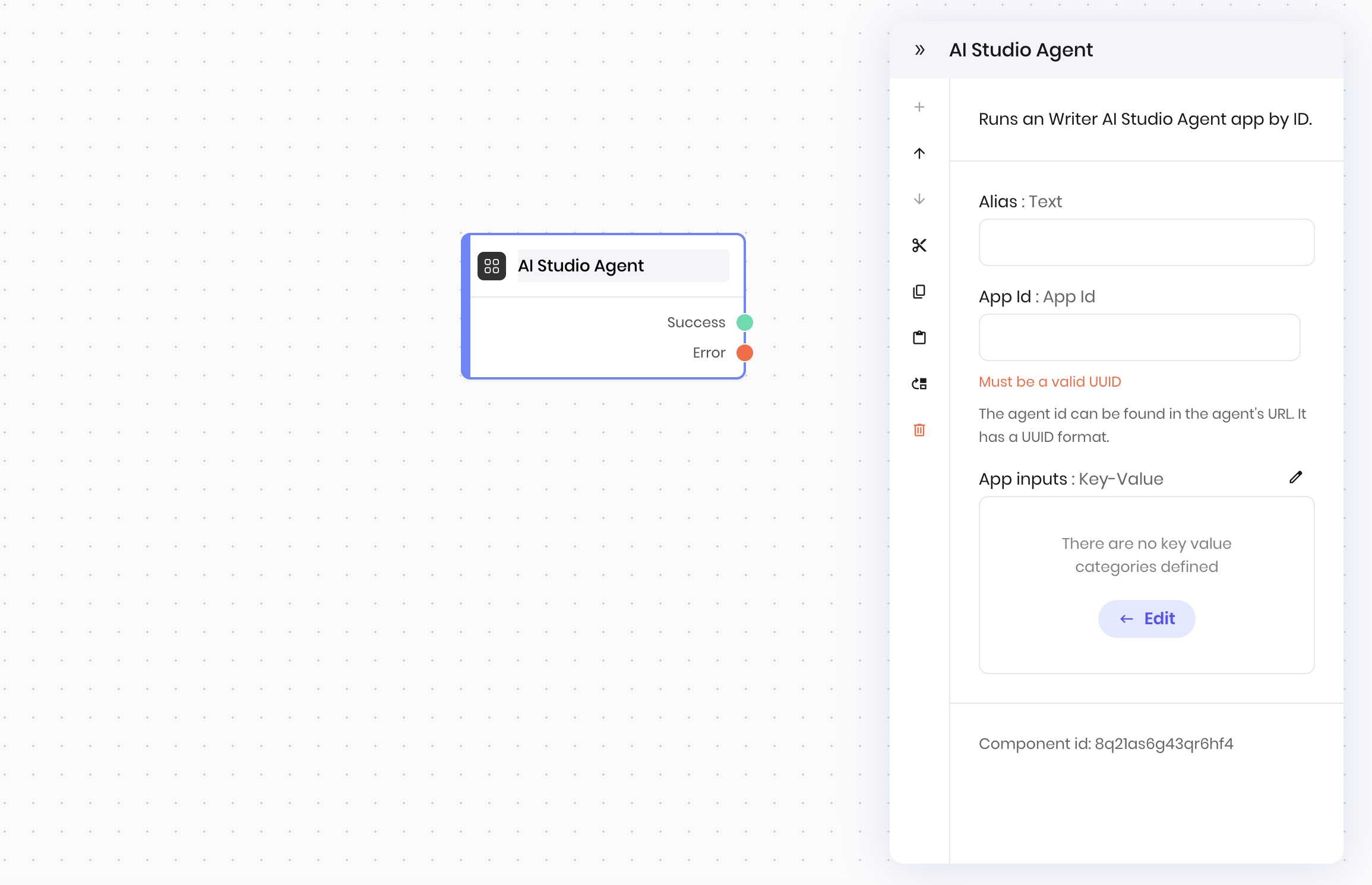

The AI Studio Agent block runs a deployed no-code AI Studio agent. Only agents with text generation and research capabilities are supported. UnderApp Id, you can select the no-code agent you’d like to run from a pre-populated list of your deployed no-code agents.
No-code agents with chat capabilities are not supported with this blueprint block. See the Agent Builder chatbot tutorial for an example of how to create a chatbot with Agent Builder.
Inputs
The AI Studio Agent block takes key-value pairs in theApp inputs field. The inputs should match the inputs of the no-code agent you’re running. The key is the name of the input and the value is the value you’d like to pass to the agent.

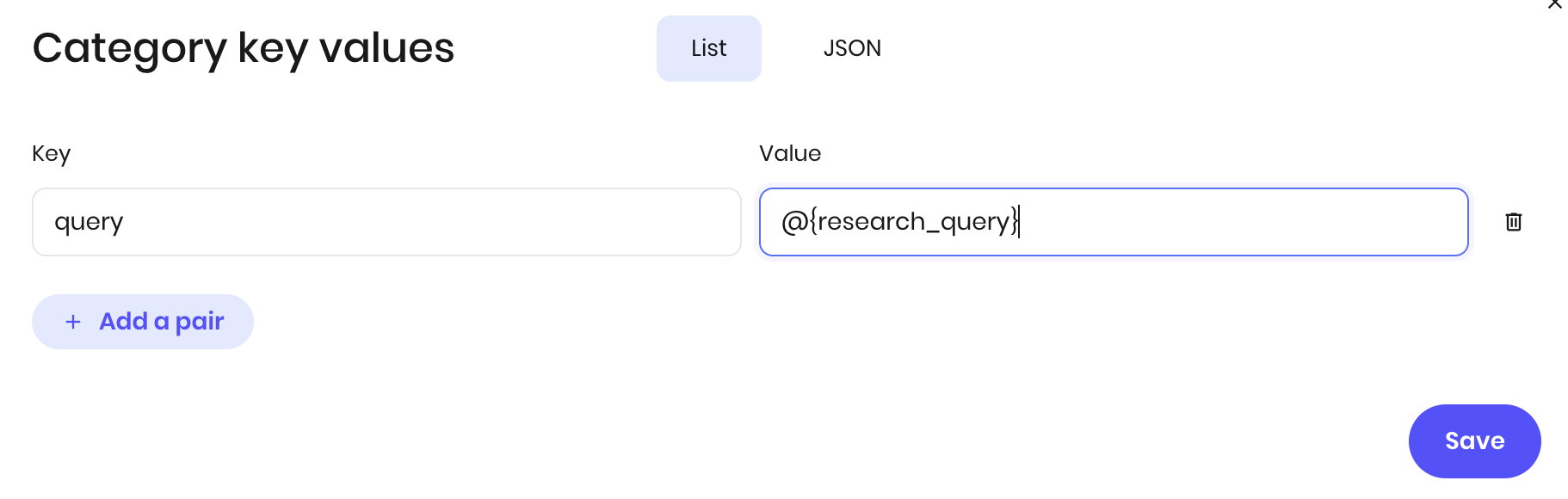

If the no-code agent is a research assistant, it takes a single input with the key query. The value is the query you’d like the agent to run.
File and image inputs
If the input is a file or an image, you must upload the file to Writer first and then pass the ID to the agent. You can’t pass the file or image directly to the agent. See the Upload, parse, and summarize PDFs tutorial for more information on how to upload files to the Writer cloud. If the no-code agent accepts URLs to a file or image as input, you can pass a URL to the agent as a value rather than uploading the file to the Writer cloud.Output
The AI Studio Agent block returns the output of the no-code agent as a string. You can access the output of an AI Studio Agent block using the@{result} variable in the block that follows it in a blueprint.
Example
The following example shows an AI Studio Agent block that runs a no-code AI Studio agent.

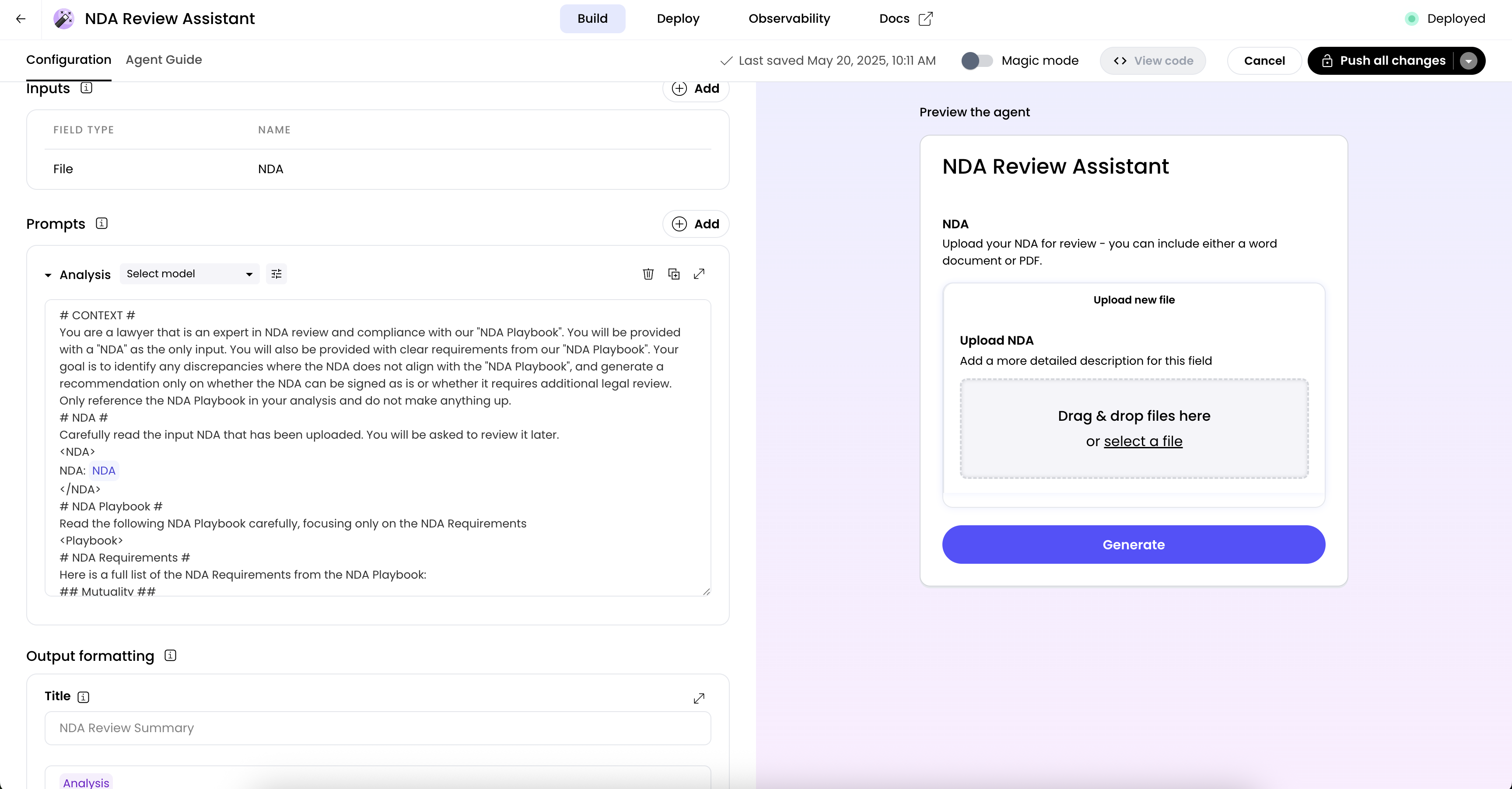

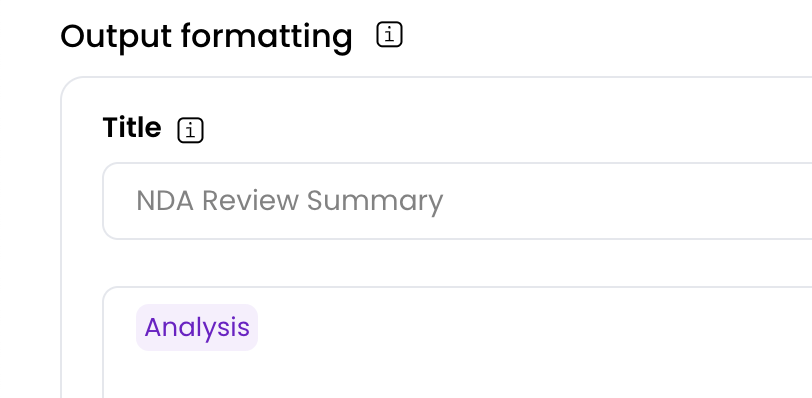

The no-code agent is an NDA review assistant that accepts a file input with the name NDA and runs a text generation workflow. It returns the analysis from the workflow in the Output formatting field.

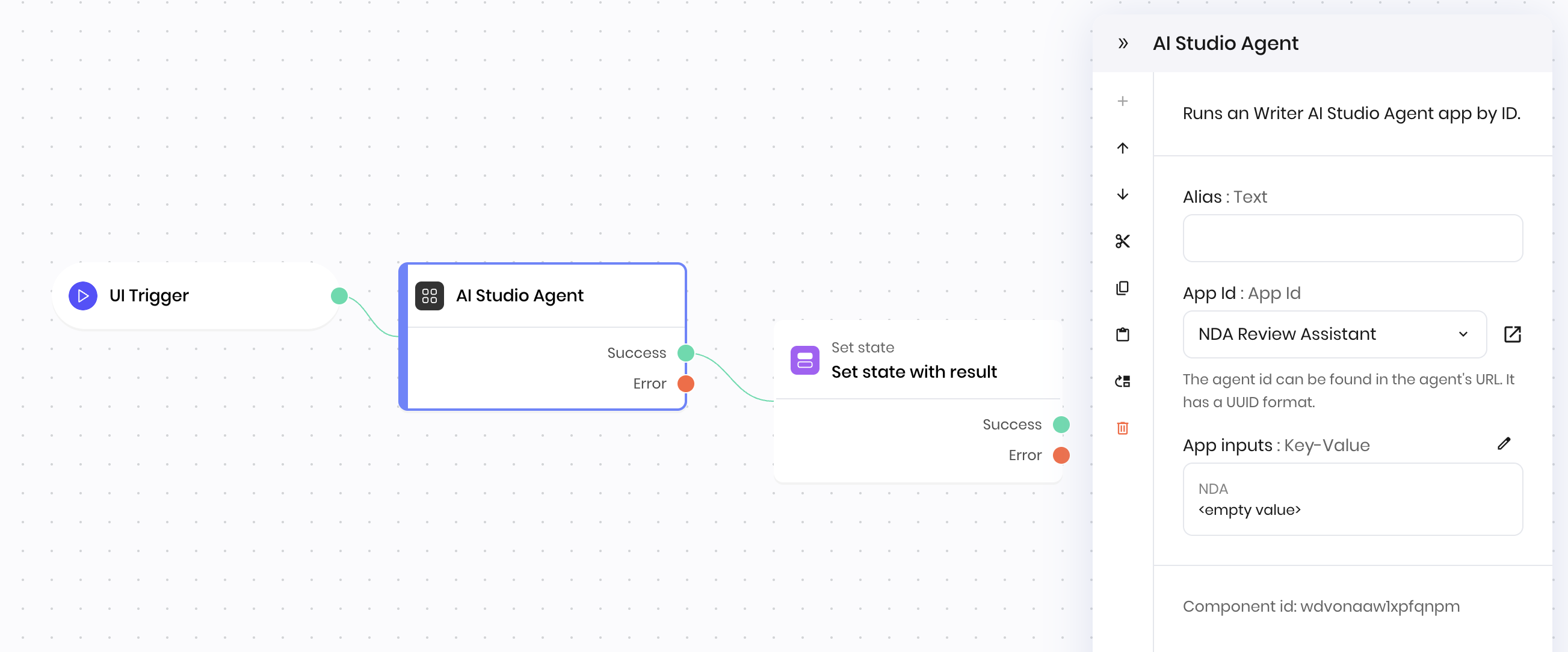

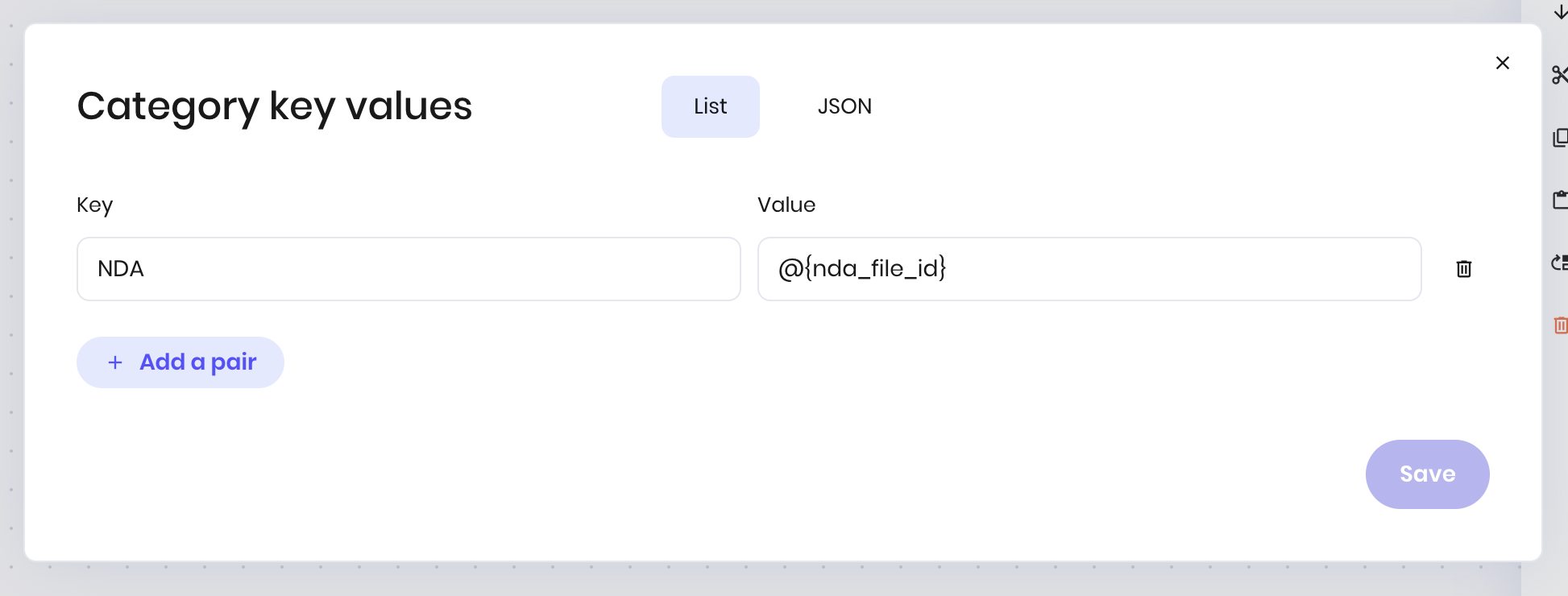

In this example blueprint, the AI Studio Agent block provides a file ID for an uploaded file, which is stored in the agent’s state as nda_file_id. The file must already be uploaded to the Writer cloud.
The AI Studio Agent block returns the output of the no-code agent and proceeds to the next block, which stores the @{result} in a state variable.
Errors
If the AI Studio Agent block fails with the errorFailed to acquire proper response for completion from data, ensure that your no-code agent in AI Studio returns a value in the Output formatting field and that you are passing the correct inputs to the agent.
Fields
| Name | Type | Control | Default | Description | Options | Validation |
|---|---|---|---|---|---|---|
| App Id | App Id | - | - | The agent id can be found in the agent’s URL. It has a UUID format. | - | Format: uuid |
| App inputs | Key-Value | - | - | - | - |
End states
Below are the possible end states of the block call.| Name | Field | Type | Description |
|---|---|---|---|
| Success | - | success | If the execution was successful. |
| Error | - | error | If the function raises an Exception. |
